555 Timer IC - Precision Timing Circuit

Details

  • Location: Cabinet-3, Bin 36, Section A
  • Category: Analog ICs
  • Brand: Various (TI, STMicroelectronics, etc.)
  • Part Number: NE555 / LM555
  • Package: 8-DIP
  • Quantity: 70
  • Status: Available
  • Price Range: $0.25-0.75
  • Datasheet: NE555 Datasheet
  • Product URL: https://www.ti.com/product/NE555

Description

The 555 timer is one of the most popular and versatile integrated circuits ever created. This precision timing circuit can be configured as an astable multivibrator (oscillator), monostable multivibrator (one-shot), or bistable multivibrator (flip-flop). It’s widely used in timing applications, pulse generation, and sequential timing circuits.

Specifications

Electrical Characteristics

  • Operating Voltage: 4.5V ~ 16V
  • Supply Current: 3mA (typical)
  • Output Current: 200mA (source/sink)
  • Frequency Range: 0.1Hz to 500kHz
  • Temperature Stability: 50ppm/°C
  • Timing Accuracy: ±1% (with proper components)

Physical Characteristics

  • Package: 8-DIP (0.300”, 7.62mm)
  • Dimensions: Standard 8-pin DIP package
  • Operating Temperature: 0°C ~ 70°C (commercial), -55°C ~ 125°C (military)
  • Mounting Type: Through Hole

Key Features

  • Astable and monostable operation modes
  • High output current capability (200mA)
  • Wide supply voltage range (4.5V-16V)
  • Temperature stable operation
  • TTL and CMOS compatible outputs
  • Adjustable duty cycle in astable mode
  • Single supply operation

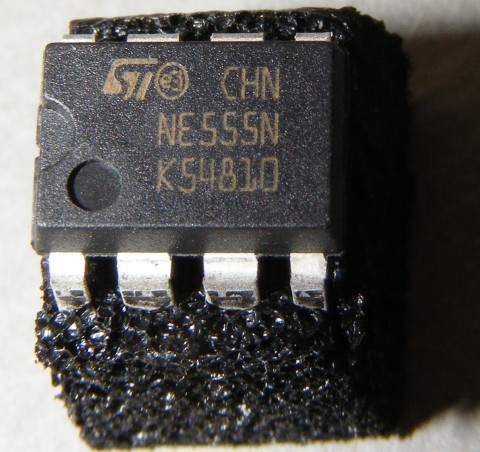

555 Timer IC

Image: NE555 Timer IC in 8-pin DIP package (Creative Commons, Wikimedia Commons)

Pinout Diagram

Pin Descriptions (8-DIP Package)

PinNameFunction
1GNDGround
2TRIGGERTrigger input (active low)
3OUTPUTTimer output
4RESETReset input (active low)
5CONTROLControl voltage input
6THRESHOLDThreshold input
7DISCHARGEOpen collector discharge output
8VCCPositive power supply

Applications

Common use cases and applications for this component:

  • LED flashers and blinkers
  • Pulse width modulation (PWM) circuits
  • Tone generators and buzzers
  • Delay circuits and timers
  • Clock generators for digital circuits
  • Voltage controlled oscillators (VCO)
  • Missing pulse detectors
  • Sequential timing circuits

Circuit Examples

Astable Multivibrator (Oscillator)

VCC (Pin 8) ---- +5V to +15V
GND (Pin 1) ---- Ground
RESET (Pin 4) -- VCC (or control input)
CONTROL (Pin 5) - 0.01µF capacitor to ground
TRIGGER (Pin 2) - Connected to THRESHOLD (Pin 6)
THRESHOLD (Pin 6) - R1+R2 to VCC, timing capacitor to ground
DISCHARGE (Pin 7) - R2 to THRESHOLD
OUTPUT (Pin 3) -- Output signal

Frequency = 1.44 / ((R1 + 2*R2) * C)

Monostable Multivibrator (One-Shot)

VCC (Pin 8) ---- +5V to +15V
GND (Pin 1) ---- Ground
RESET (Pin 4) -- VCC
CONTROL (Pin 5) - 0.01µF capacitor to ground
TRIGGER (Pin 2) - Input trigger (active low)
THRESHOLD (Pin 6) - R1 to VCC, timing capacitor to ground
DISCHARGE (Pin 7) - Connected to THRESHOLD
OUTPUT (Pin 3) -- Output pulse

Pulse Width = 1.1 * R1 * C

Technical Notes

Important technical considerations and features:

  • Use 0.01µF bypass capacitor on CONTROL pin (Pin 5) for noise immunity
  • RESET pin (Pin 4) should be tied to VCC if not used for control
  • Output can source or sink up to 200mA, suitable for driving LEDs directly
  • For precise timing, use 1% tolerance resistors and capacitors
  • Timing components should be stable over temperature
  • Maximum frequency limited by propagation delays (~500kHz)
  • DISCHARGE pin provides path to discharge timing capacitor
  • TRIGGER and THRESHOLD inputs have hysteresis for noise immunity

Tags

timer-ic, analog-ic, precision-timer, astable, monostable, 555 cabinet-3 bin-36 status-available

Notes

The 555 timer is arguably the most famous IC in electronics history, designed by Hans Camenzind in 1971. It’s an essential component for any electronics hobbyist or engineer. The IC is incredibly versatile and can be found in countless applications from simple LED flashers to complex timing circuits. Its robust design and wide operating range make it suitable for both hobby projects and professional applications. Having 70 of these ICs provides excellent flexibility for various timing and oscillator projects.
