Adafruit 389 Mini Remote Control

Details

  • Location: Cabinet-5, Bin 32
  • Category: Sensors & Transducers
  • Brand: Adafruit Industries
  • Part Number: 389
  • Package: Individual Unit
  • Quantity: 3
  • Status: Available
  • Price Range: $4-5
  • Product URL: https://www.adafruit.com/product/389

Description

This little remote control is perfect for controlling robots or other projects from across the room. It features 21 buttons with a handy layout including directional buttons and number entry buttons. The remote uses NEC encoding and sends data codes 0 through 26 (skipping codes 3, 7, 11, 15, 19, and 23) to address #0. It can be used to control devices expecting NEC codes or paired with IR remote receiver sensors for custom applications.

Specifications

Physical Characteristics

  • Dimensions: 40mm x 86mm x 7mm (1.6” x 3.4” x 0.3”)
  • Weight: Lightweight plastic construction
  • Color: Black with white button labels
  • Button Count: 21 buttons total
  • Layout: Directional pad + numeric keypad + function buttons
  • Battery: CR2032 included (just remove plastic pull-tab)

Electrical Characteristics

  • IR Frequency: 38KHz carrier frequency
  • IR Wavelength: 940nm
  • Protocol: NEC encoding type
  • Address: #0 (default)
  • Data Codes: 0-26 (skips 3, 7, 11, 15, 19, 23)
  • Power Source: CR2032 lithium coin cell battery
  • Battery Life: Long life with typical usage

Key Features

  • 21-button layout with directional and numeric controls
  • NEC protocol encoding for wide compatibility
  • 38KHz IR transmission at 940nm wavelength
  • Includes CR2032 battery (remove pull-tab to activate)
  • Compact size perfect for handheld operation
  • Compatible with standard IR receiver modules
  • Ready to use out of the box


Adafruit 389 Mini Remote Control

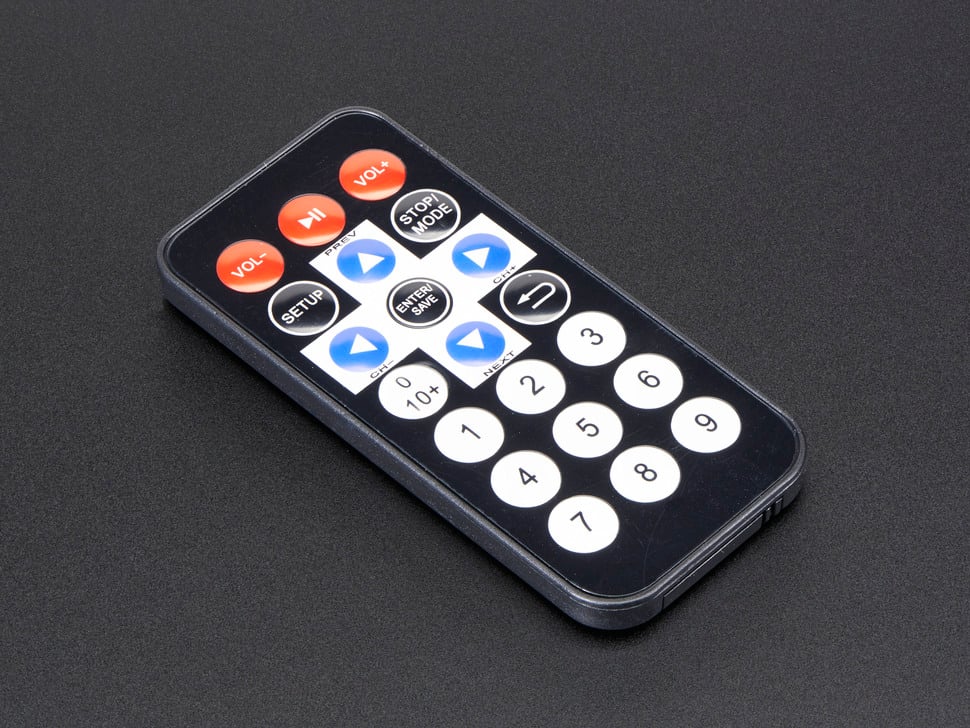

Visual Description: This compact black remote control features 21 clearly labeled white buttons arranged in a logical layout. The top section has directional arrow buttons (up, down, left, right) with an OK button in the center. Below that are numeric buttons 0-9, and additional function buttons including power, menu, and other controls. The remote is slim and lightweight, perfect for handheld operation.

Applications

Common use cases and applications for this component:

  • Robot remote control systems
  • Arduino and CircuitPython IR projects
  • Home automation control interfaces
  • Interactive art installations
  • Educational electronics demonstrations
  • Custom appliance control
  • Prototype remote control development
  • IoT device control interfaces
  • Wireless project control
  • Distance-controlled LED displays

Circuit Examples

Basic IR Receiver Setup

IR Receiver (TSOP38238) connections:
- VCC → 3.3V or 5V
- GND → Ground
- OUT → Digital Pin (e.g., Pin 2)

Arduino Code Example

#include <IRremote.h>

const int RECV_PIN = 2;
IRrecv irrecv(RECV_PIN);
decode_results results;

void setup() {
  Serial.begin(9600);
  irrecv.enableIRIn();
  Serial.println("IR Receiver Ready");
}

void loop() {
  if (irrecv.decode(&results)) {
    Serial.print("Code: ");
    Serial.println(results.value, HEX);
    irrecv.resume();
  }
}

Programming Examples

CircuitPython Example

import pulseio
import board
import adafruit_irremote

pulsein = pulseio.PulseIn(board.D2, maxlen=120, idle_state=True)
decoder = adafruit_irremote.GenericDecode()

while True:
    pulses = decoder.read_pulses(pulsein)
    if pulses:
        try:
            code = decoder.decode_bits(pulses)
            print("IR Code:", code)
        except adafruit_irremote.IRNECRepeatException:
            print("Repeat code")
        except adafruit_irremote.IRDecodeException:
            print("Decode error")

Technical Notes

Important technical considerations and usage tips:

  • Button Mapping: Codes 0-26 with gaps at 3, 7, 11, 15, 19, 23
  • Range: Typical range 10-15 feet depending on ambient IR interference
  • Battery: Remove plastic pull-tab from CR2032 to activate
  • Compatibility: Works with most 38KHz IR receiver modules
  • Protocol: Standard NEC encoding ensures wide compatibility
  • Interference: Avoid direct sunlight and fluorescent lights
  • Pairing: Use with TSOP38238 or similar IR receiver sensors
  • Code Learning: Can be used with code learning IR receivers
  • Troubleshooting: Check battery orientation and receiver wiring
  • Storage: Store in dry location to prevent battery corrosion
