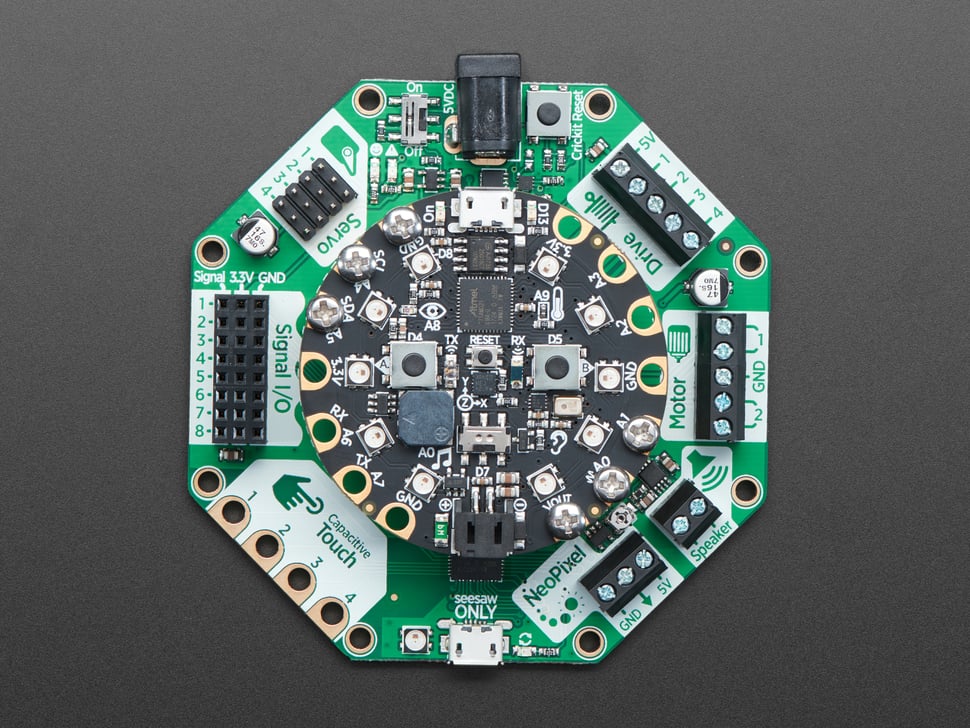

Adafruit CRICKIT for Circuit Playground Express
Overview
Sometimes we wonder if robotics engineers ever watch movies. If they did, they’d know that making robots into servants always ends up in a robot rebellion. Why even go down that path? Here at Adafruit, we believe in making robots our friends!
Crickit - That’s our Creative Robotics & Interactive Construction Kit. It’s an add-on to our popular Circuit Playground Express that lets you MakeRobotFriend using CircuitPython, MakeCode, or Arduino.
Specifications
- Dimensions: 85.0mm x 81.0mm x 14.7mm / 3.3” x 3.2” x 0.6”
- Weight: 30.7g / 1.1oz
- Power Input: 5V DC via barrel jack or USB
- Communication: I2C via seesaw protocol
- Operating Voltage: 5V for all outputs
Key Features
Motor Control
- 2x Brushed DC Motors: 1 Amp current limited each, 8-bit PWM speed control
- Stepper Motor Support: Can drive one bipolar stepper motor
- Bi-directional Control: Forward and reverse operation
- Current Limiting: Automatic current protection
- Kick-back Protection: Diode protection for inductive loads
Servo Control
- 4x Servo Outputs: Precision 16-bit timers for accurate control
- Standard Servos: Compatible with standard hobby servos
- Micro Servos: Works with micro and mini servos
- Continuous Rotation: Supports continuous rotation servos
- High Resolution: 16-bit resolution for smooth movement
High-Current Outputs
- 4x Darlington Drivers: 500mA drive capability each
- Kick-back Protection: Built-in protection diodes
- Solenoid Control: Drive solenoids and relays
- LED Drivers: High-current LED control
- Stepper Support: Can drive one unipolar stepper motor
Sensors and I/O
- 4x Capacitive Touch: Touch-sensitive inputs with alligator pads
- 8x Signal Pins: Digital I/O or analog inputs
- 1x NeoPixel Driver: 5V level shifter for LED strips
- 1x Audio Amplifier: Class D, 3W max, 4-8 ohm speakers
Seesaw Architecture
I2C Communication
- Seesaw Protocol: Adafruit’s I2C-to-everything bridge firmware
- Two Pin Control: Only uses SDA and SCL from Circuit Playground
- Offloaded Processing: All timers and PWM handled by co-processor
- Reliable Communication: Robust I2C protocol implementation
Co-processor Benefits
- Timer Offloading: Frees up Circuit Playground timers
- Precise Timing: Hardware timers for accurate servo control
- Simultaneous Control: Multiple outputs controlled simultaneously
- Real-time Operation: No timing conflicts with main processor
Circuit Playground Integration
Mechanical Connection
- Bolt-On Design: Secure mechanical attachment
- Standoff Mounting: Proper spacing and alignment
- Stable Platform: Rigid connection for reliable operation
- Easy Assembly: No soldering required
Electrical Interface
- I2C Only: Minimal pin usage on Circuit Playground
- Power Sharing: Can power Circuit Playground via USB
- Signal Access: All Circuit Playground features still available
- Expansion: Adds capabilities without losing existing features
Compatible Boards
- Circuit Playground Express: Primary target platform
- Circuit Playground Bluefruit: Full compatibility
- Circuit Playground Classic: Limited compatibility
Power Management
Power Input Options
- 5V Barrel Jack: Primary power input for high-current applications
- USB Power: Can power light loads via USB
- Auto-Switching: Automatic power source selection
- Power Sharing: Can power Circuit Playground from CRICKIT
Power Protection
- eFuse Management: TPS2595 eFuse chip for protection
- Voltage Protection: Auto-shutoff if voltage outside 3V-5.5V range
- Over-current Protection: 4A current limiting
- Reverse Protection: Protection against reverse polarity
Power Requirements
- Light Loads: USB power sufficient for servos and sensors
- Heavy Loads: 5V 2A supply recommended for motors
- Multiple Motors: 5V 4A supply for multiple large motors/servos
- Current Budget: Plan total current consumption carefully
Programming Support
CircuitPython
- Primary Platform: Optimized for CircuitPython development
- Adafruit Libraries: Comprehensive library support
- Interactive Development: REPL for live coding and testing
- File System: Store code and data on Circuit Playground
- Rapid Prototyping: Quick iteration and testing
Arduino IDE
- Full Support: Complete Arduino IDE compatibility
- Adafruit Libraries: Arduino libraries for all functions
- C/C++ Programming: Traditional embedded programming
- Advanced Control: Low-level hardware access
- Community: Large Arduino community support
MakeCode
- Block Programming: Visual programming interface
- Educational: Perfect for learning robotics concepts
- Drag-and-Drop: Easy programming for beginners
- JavaScript: Text-based programming option available
Applications
Educational Robotics
- STEM Learning: Science, technology, engineering, math education
- Robotics Basics: Learn fundamental robotics concepts
- Programming Education: Learn coding through robotics
- Classroom Projects: Group and individual learning activities
Maker Projects
- Robot Friends: Create interactive robot companions
- Home Automation: Automated systems and controls
- Art Installations: Interactive art and kinetic sculptures
- Prototype Development: Rapid robotics prototyping
Professional Use
- Product Development: Proof-of-concept robotics systems
- Educational Tools: Teaching aids and demonstrations
- Research Projects: Academic and industrial research
- Testing Platforms: Hardware and software testing
Hardware Specifications
Motor Drivers
- Type: Dual H-bridge motor drivers
- Current: 1A continuous per motor
- Voltage: 5V operation
- Control: 8-bit PWM speed control
- Protection: Current limiting and kick-back protection
Servo Control
- Channels: 4 independent servo outputs
- Resolution: 16-bit timer resolution
- Frequency: Standard 50Hz servo frequency
- Pulse Width: 1-2ms pulse width range
- Current: Adequate current for standard servos
Darlington Drivers
- Channels: 4 high-current outputs
- Current: 500mA per channel
- Voltage: 5V switching
- Protection: Kick-back diode protection
- Applications: Solenoids, relays, high-current LEDs
Getting Started
Required Components
- Circuit Playground Express: Main controller board
- 5V Power Supply: 2A minimum, 4A for heavy loads
- CRICKIT Board: This robotics expansion board
- Motors/Servos: Robotics components to control
Basic Setup
- Attach Circuit Playground: Bolt onto CRICKIT using standoffs
- Connect Power: Use appropriate 5V power supply
- Install Software: Set up CircuitPython or Arduino IDE
- Load Examples: Start with basic motor/servo examples
- Build Projects: Create custom robotics applications
Programming Workflow
- Plan Project: Design robot behavior and requirements
- Wire Components: Connect motors, servos, sensors
- Write Code: Program robot behavior
- Test Incrementally: Test each component separately
- Integrate: Combine all components into final project
Safety Considerations
Electrical Safety
- Proper Power: Use appropriate power supply ratings
- Current Limits: Respect current limitations of outputs
- Heat Management: Monitor for overheating components
- Short Protection: Avoid short circuits
Mechanical Safety
- Secure Mounting: Ensure all components properly mounted
- Moving Parts: Be careful with motors and servos
- Sharp Edges: Watch for sharp edges on mechanical components
- Supervision: Adult supervision for young users
Troubleshooting
Communication Issues
- I2C Problems: Check SDA/SCL connections
- Address Conflicts: Verify I2C address settings
- Power Issues: Ensure adequate power supply
- Library Versions: Use compatible library versions
Motor/Servo Issues
- No Movement: Check power supply and connections
- Erratic Behavior: Verify control signals and power
- Overheating: Check current consumption and heat sinks
- Noise: Add decoupling capacitors if needed
Power Problems
- Insufficient Power: Use higher current power supply
- Voltage Drops: Check connections and wire gauge
- eFuse Tripping: Reduce current consumption
- Heat Issues: Improve ventilation and heat dissipation
Package Contents
- 1x Adafruit CRICKIT for Circuit Playground Express
- Standoffs and screws for Circuit Playground attachment
- Documentation and getting started guide
- Access to comprehensive online resources
Important Notes
- 5V Only: Designed for 5V operation, not compatible with 9V/12V
- Power Supply Required: External 5V supply needed for most applications
- Circuit Playground Required: Circuit Playground Express sold separately
- No Soldering: Assembly requires no soldering
- Current Planning: Plan total current consumption carefully
Advantages
- Easy Integration: Simple bolt-on design
- Comprehensive I/O: Motors, servos, sensors, audio in one board
- Educational: Perfect for learning robotics
- Robust Design: Built-in protection and safety features
- Community Support: Extensive documentation and examples
Limitations
- 5V Only: Limited to 5V components
- Current Limits: 1A per motor, 4A total system
- Size: Larger than Circuit Playground alone
- Cost: Additional cost beyond Circuit Playground
- Complexity: More complex than simple motor drivers
Recommended Accessories
- 5V 2A or 4A power supply for adequate power
- Standard hobby servos for motion control
- Small DC motors for drive systems
- Solenoids and relays for automation
- Sensors and switches for robot interaction
