Bluetooth and RTC Modules Collection

Details

• Location: Cabinet-2, Bin 9
• Category: Wireless and Timing Modules
• Total Quantity: 5 modules
• Applications: Bluetooth connectivity, precise timekeeping

Description

Collection of advanced wireless communication and precision timing modules including Bluetooth HID controllers, Bluetooth Low Energy modules, and ultra-precise real-time clocks with temperature compensation.

Module Types

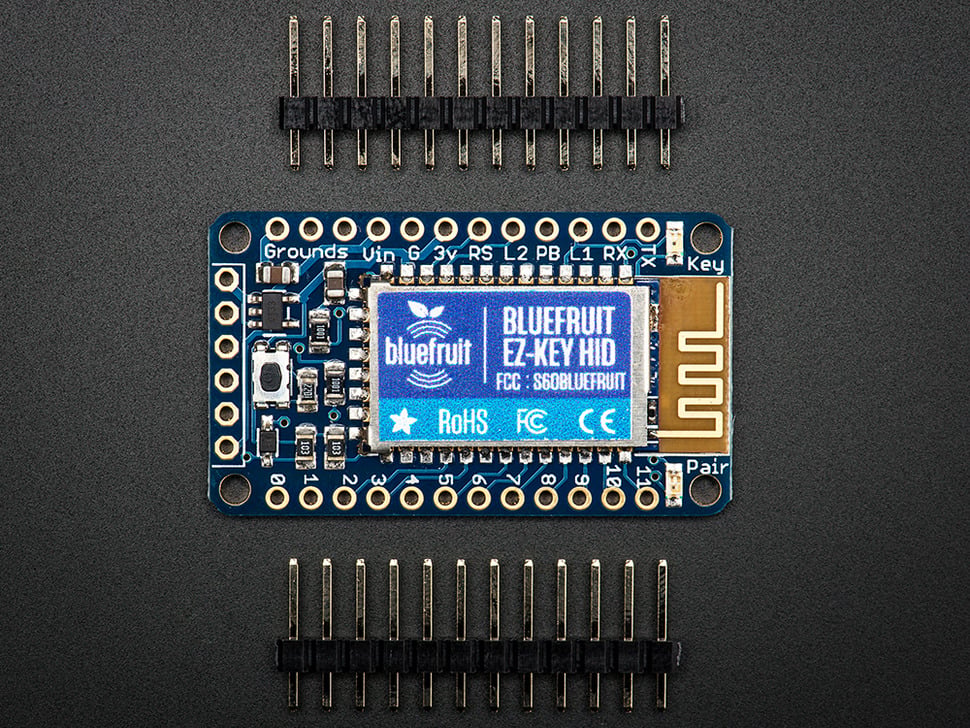

Adafruit Bluefruit EZ-Key (Product ID: 1535)

• Function: 12-Input Bluetooth HID Keyboard Controller
• Version: v1.2
• Quantity: 1
• Interface: Bluetooth Classic (v2.1+)
• Features:
  • Acts as wireless Bluetooth keyboard
  • 12 programmable input pins
  • Pre-programmed with arrow keys, WASD, space, return
  • Reprogrammable via UART
  • Mouse support (clicks and movement)
  • Multimedia key support
  • Over-the-air remapping
• Power: 3-16VDC
• Dimensions: 23.01mm x 39.65mm x 4.25mm
• Status: No longer stocked by Adafruit

Adafruit Bluefruit LE nRF8001 (Product ID: 1697)

• Function: Bluetooth Low Energy (BLE 4.0) Breakout
• Version: v1.0
• Quantity: 1
• Interface: SPI
• Features:
  • Bluetooth Low Energy (BLE 4.0)
  • UART simulation over BLE
  • iOS and Android compatible
  • Low power consumption
  • ASCII data transmission
• Power: 2.3-5.5V
• Dimensions: 29mm x 28mm x 0.8mm
• Status: No longer stocked (superseded by nRF51822 modules)

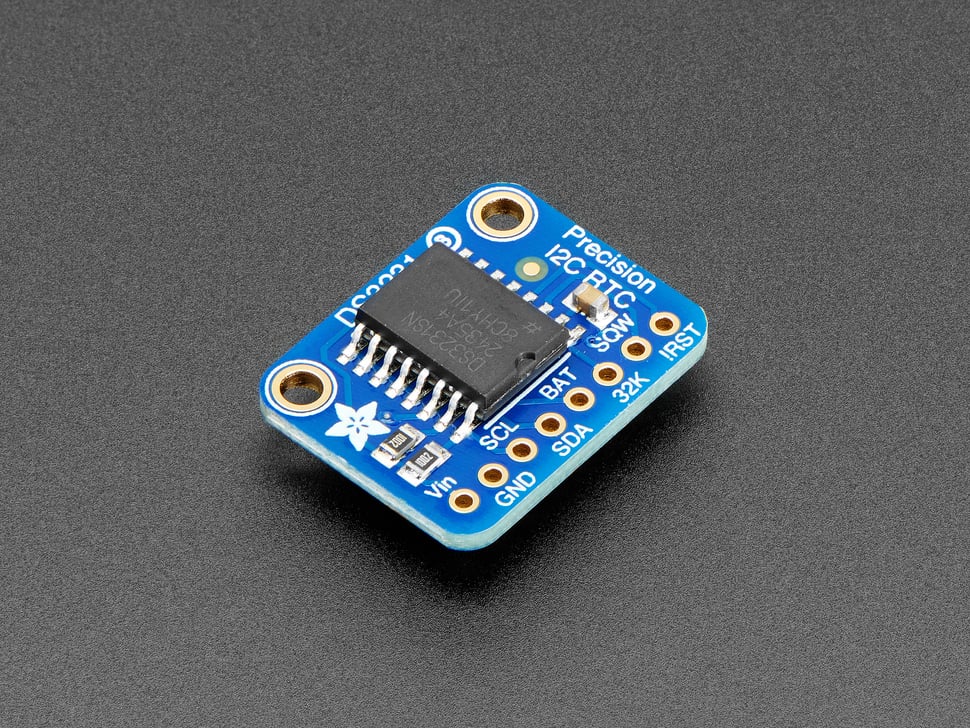

Adafruit DS3231 Precision RTC (Product ID: 3013)

• Function: Precision Real-Time Clock Breakout
• Quantity: 2
• Interface: I2C
• Features:
  • Temperature-compensated crystal oscillator (TCXO)
  • Integrated crystal and temperature sensor
  • Battery backup with CR1220 coin cell
  • Years of precision timekeeping
  • Alarm functions
  • 32kHz output
• Accuracy: Extremely high precision
• Power: 3.3V - 5V
• Dimensions: 23mm x 17.6mm x 7.2mm

Macetech ChronoDot

• Function: Ultra-Precise Real-Time Clock Module
• Quantity: 1
• Interface: I2C
• Features:
  • Based on DS3231 temperature-compensated RTC
  • Accuracy: ±2ppm (≈1 minute per year)
  • CR2016 battery backup (8+ year life)
  • No external crystal required
  • Breadboard compatible
  • Mounting holes for chassis installation
• Power: 2.3-5.5V
• Current: 200µA (active), 840nA (timekeeping)
• PCB Size: 1.2 inches diameter

Images

Applications

Bluetooth Applications

• Wireless Keyboards: Custom input devices and game controllers
• IoT Projects: Low-power sensor data transmission
• Mobile Apps: iOS and Android connectivity
• Wearables: Bluetooth-enabled accessories
• Remote Controls: Custom wireless interfaces

RTC Applications

• Data Logging: Precise timestamps for sensor data
• Clocks: Accurate timekeeping displays
• Scheduling: Time-based automation systems
• Backup Systems: Power-loss time retention
• Scientific Instruments: Precise timing requirements

Technical Specifications

Bluetooth Modules

• EZ-Key: Bluetooth Classic, HID profile, 12 inputs
• Bluefruit LE: BLE 4.0, SPI interface, low power

RTC Modules

• DS3231 Features: Temperature compensation, integrated crystal
• ChronoDot Features: Ultra-high precision, long battery life
• Both: I2C interface, battery backup, alarm functions

Compatibility

Development Platforms

• Arduino: Full library support for all modules
• Raspberry Pi: I2C and SPI compatibility
• CircuitPython: Native support for Adafruit modules
• Mobile Devices: iOS and Android BLE support

Interface Requirements

• I2C: Pull-up resistors required (4.7kΩ or 10kΩ)
• SPI: Standard SPI pins (MOSI, MISO, SCK, CS)
• Bluetooth: Compatible devices with BT 2.1+ or BLE 4.0+

Documentation

• EZ-Key Tutorial: Adafruit Learn Guide
• Bluefruit LE Guide: Getting Started
• DS3231 Tutorial: RTC Breakout Guide
• ChronoDot Docs: Macetech Documentation
