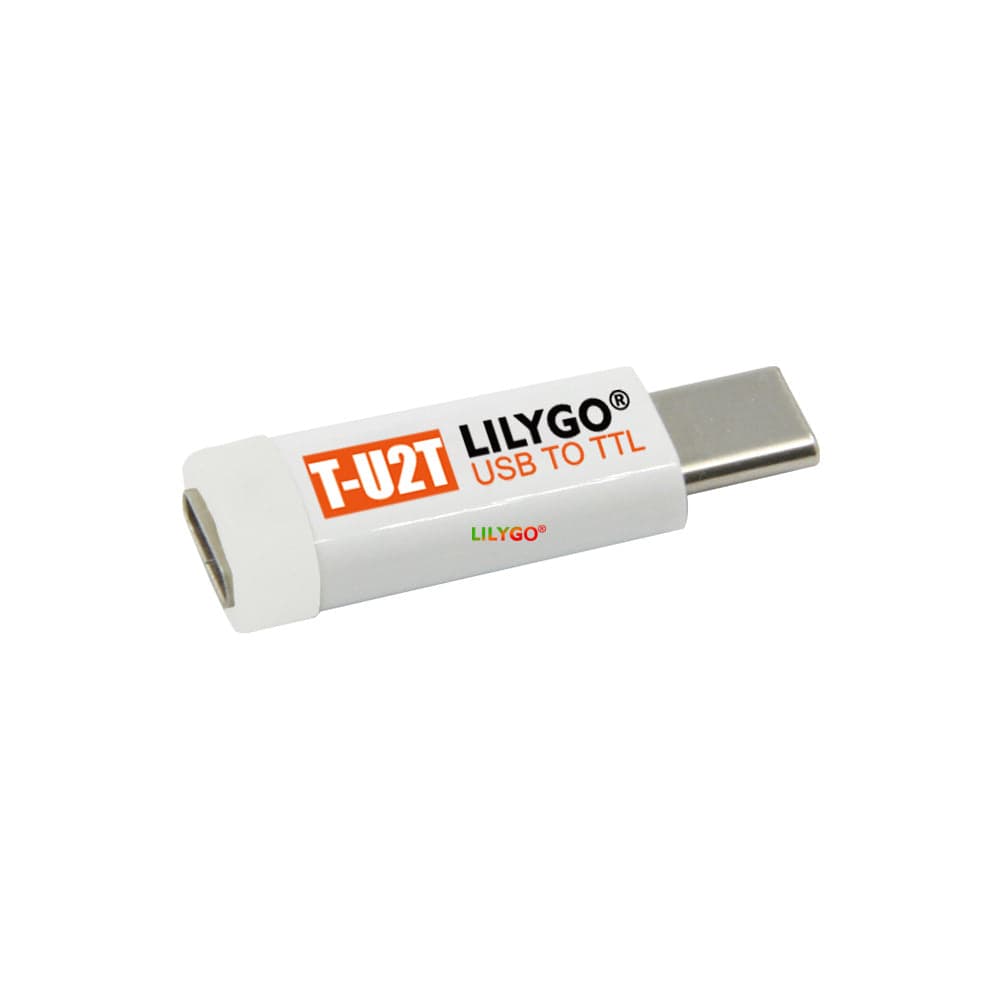

LILYGO T-U2T USB to TTL Programmer

Overview

The LILYGO T-U2T (USB To TTL) is a compact programming adapter designed specifically for LILYGO ESP32 development boards. It combines a CH9102 USB-to-serial converter with an automatic download circuit in a space-saving USB-C adapter form factor. This innovative design eliminates the need for duplicate USB-to-TTL circuits on individual development boards, reducing cost and board size.

Location

Cabinet-1, Bin 5 - Programming / Debugging Tools

Images

Specifications

Hardware Features

• USB Chip: CH9102 high-speed USB-to-serial converter
• Transfer Speed: Up to 4Mbps maximum read/write speed
• Form Factor: USB-C male to USB-C female adapter
• Auto-Download: Built-in automatic download circuit
• Boot Button: Manual boot/reset control
• Power Indicator: LED status indication
• Voltage Levels: 3.3V TTL compatible

Physical Specifications

• Connector Type: USB-C male input, USB-C female output
• Size: Compact adapter form factor
• Weight: Lightweight design
• Color: Black PCB with component markings

Pin Configuration

TTL Serial Pins (Internal)

• VCC: 3.3V power output
• GND: Ground reference
• TX: Transmit data (from CH9102 to target)
• RX: Receive data (from target to CH9102)
• DTR: Data Terminal Ready (auto-download control)
• RTS: Request to Send (auto-download control)

Auto-Download Circuit

• GPIO0 Control: Automatic boot mode selection
• EN/Reset Control: Automatic reset timing
• Boot Button: Manual override capability

Supported Devices

LILYGO ESP32 Boards

• T-Display Series: E-paper and LCD variants
• T-Camera Series: Camera development boards
• T-Beam Series: LoRa GPS tracker boards
• T-Call Series: GSM/cellular boards
• T-Watch Series: Smartwatch development platforms
• Custom ESP32 Boards: Any LILYGO board with T-U2T compatibility

ESP32 Variants

• ESP32: Original dual-core variant
• ESP32-S2: Single-core with native USB
• ESP32-S3: Dual-core with AI acceleration
• ESP32-C3: RISC-V single-core variant

Software Support

Development Environments

• Arduino IDE: Full support with ESP32 board package
• PlatformIO: Native ESP32 platform support
• ESP-IDF: Espressif official development framework
• MicroPython: Serial programming support

Operating Systems

• Windows: CH9102 driver support
• macOS: Native driver support (macOS 10.9+)
• Linux: Built-in kernel driver support

Programming Tools

• esptool.py: ESP32 flash programming utility
• Arduino IDE: Integrated upload and monitor
• PlatformIO: Advanced project management
• Serial Monitors: Any standard serial terminal

Usage Instructions

Basic Setup

1. Install Drivers: Install CH9102 drivers if needed (Windows)
2. Connect Adapter: Plug T-U2T into USB port on computer
3. Connect Target: Connect T-U2T to LILYGO development board
4. Select Port: Choose correct COM/serial port in IDE
5. Upload Code: Use normal upload process - auto-download handles timing

Arduino IDE Configuration

Board: ESP32 Dev Module (or specific LILYGO board)
Upload Speed: 921600 (or lower if issues)
CPU Frequency: 240MHz
Flash Mode: QIO
Flash Size: 4MB (or board-specific)
Port: COM# (Windows) or /dev/ttyUSB# (Linux)

PlatformIO Configuration

[env:esp32dev]
platform = espressif32
board = esp32dev
framework = arduino
upload_speed = 921600
monitor_speed = 115200
upload_port = COM# ; or /dev/ttyUSB#
monitor_port = COM# ; or /dev/ttyUSB#

Advantages

Design Benefits

• Space Saving: Eliminates USB-to-TTL circuits on target boards
• Cost Effective: Reduces component count on development boards
• Reusable: One adapter works with multiple LILYGO boards
• Compact: Minimal footprint USB-C adapter design

Technical Benefits

• High Speed: 4Mbps transfer rate for fast uploads
• Auto-Download: No manual boot button pressing required
• Reliable: CH9102 chip provides stable communication
• Compatible: Works with standard ESP32 development tools

Practical Benefits

• Easy to Use: Plug-and-play operation
• Portable: Small size for mobile development
• Versatile: Works with multiple board types
• Future-Proof: USB-C connector standard

Applications

Development Workflows

• Firmware Upload: Programming ESP32 flash memory
• Serial Debugging: Real-time serial monitor output
• REPL Access: MicroPython interactive programming
• Log Monitoring: Application debug output capture

Project Types

• IoT Prototyping: WiFi and Bluetooth projects
• Sensor Networks: Environmental monitoring systems
• Display Projects: E-paper and LCD applications
• Communication Devices: LoRa, GSM, and WiFi projects

Troubleshooting

Common Issues

• Driver Problems: Install latest CH9102 drivers
• Port Detection: Check Device Manager (Windows) or dmesg (Linux)
• Upload Failures: Try lower upload speeds (115200)
• Connection Issues: Verify USB-C cable quality

Solutions

• Reset Sequence: Use boot button if auto-download fails
• Cable Check: Ensure USB-C cable supports data transfer
• Port Conflicts: Close other serial applications
• Power Issues: Verify target board power requirements

Compatibility Notes

LILYGO Board Compatibility

• Native Support: Designed specifically for LILYGO boards
• Pin Mapping: Matches LILYGO board USB-C connector pinout
• Auto-Download: Optimized for ESP32 boot sequence timing

Third-Party Boards

• Limited Support: May work with other ESP32 boards
• Pin Verification: Check USB-C connector pinout compatibility
• Manual Mode: May require manual boot button operation

Package Contents

• 1x LILYGO T-U2T USB to TTL Programmer Adapter
• Documentation and driver links

Technical Resources

Documentation

• Product Page: https://lilygo.cc/products/t-u2t
• GitHub Repository: LILYGO official repositories
• Driver Downloads: CH9102 driver packages
• User Manual: Setup and usage instructions

Community Support

• LILYGO Discord: Community support channel
• GitHub Issues: Bug reports and feature requests
• Arduino Forums: ESP32 development discussions
• Reddit Communities: r/esp32 and maker communities

Tags

usb-ttl, programmer, lilygo, esp32, ch9102, auto-download, usb-c, serial-converter cabinet-1 status-available

Notes

The T-U2T represents an innovative approach to ESP32 development board design by separating the USB-to-TTL functionality into a reusable adapter. This reduces the cost and complexity of individual development boards while providing a high-quality programming interface. The CH9102 chip offers excellent compatibility and performance for ESP32 development. Store with other programming tools in Cabinet-1, Bin 5 for easy access during development projects. The compact USB-C form factor makes it ideal for portable development setups.
