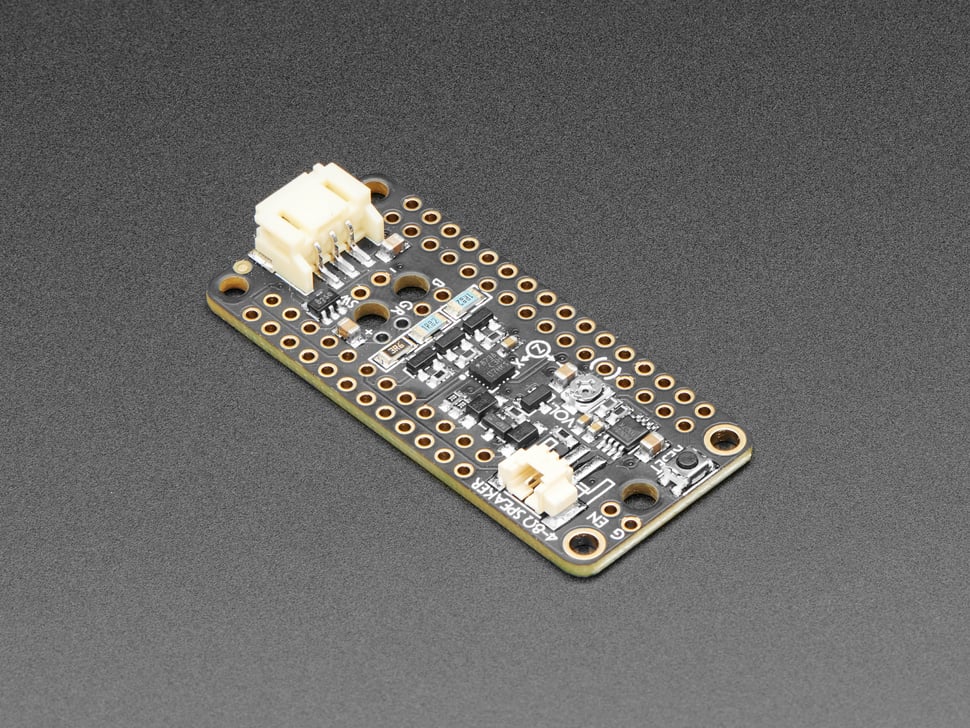

Adafruit Prop-Maker FeatherWing
Details
- Location: Cabinet-1, Bin 16
- Category: FeatherWings
- Type: Prop Making Module
- Functions: NeoPixel Driver, RGB LED Driver, Accelerometer, Audio Amplifier
- Interface: I2C, PWM, Analog Audio
- Quantity: 2
- Product URL: https://www.adafruit.com/product/3988
Description
The Adafruit Prop-Maker FeatherWing unlocks the prop-maker inside all of us, with tons of features packed in to make sabers & swords, props, toys, cosplay pieces, and more. Perfect for adding special effects to your projects!
Specifications
- Interface: I2C (accelerometer), PWM (RGB LED), Analog Audio
- Voltage: 3.3V-5V (auto-switching)
- Connectors: 3-pin JST PH for NeoPixels, STEMMA QT
- Dimensions: 50.8mm x 22.8mm x 7.2mm (2.0” x 0.9” x 0.3”)
- Weight: 4.8g (0.2oz)
- Current Draw: <1mA in low power mode
Features
- Snap-in NeoPixel Port: 3-pin JST connector with level shifter for clean signals
- 3W RGB LED Drivers: 3 high current MOSFETs for powerful RGB LEDs
- Triple-Axis Accelerometer: LIS3DH with tap detection for motion sensing
- Class D Audio Amplifier: Drive 8Ω 1W or 4Ω 3W speakers
- Low Power Mode: Pin-controlled power system for sleep/off modes
- External Switch Support: Breakouts for enable pin and mode button
Compatibility
- Best with: Feather M0 Express, M4 Express, ESP32 series
- Limited support: Feather 32u4, 328p (no analog audio, limited PWM)
- Partial support: nRF52, ESP8266 (PWM but no analog audio)
Libraries & Resources
- Arduino Library: Adafruit LIS3DH, Adafruit NeoPixel
- CircuitPython Library: adafruit_lis3dh, neopixel
- Documentation: https://learn.adafruit.com/adafruit-prop-maker-featherwing
- Example Projects: Lightsaber, Time Tracking Cube, MUNNY Lamp
Applications
- Lightsabers and prop weapons
- Cosplay accessories with sound and light effects
- Interactive toys and games
- Motion-activated decorations
- Sound-reactive LED projects
Tags
featherwing, prop-maker, neopixel, accelerometer, audio, rgb-led, adafruit
