Important Note

This entire repo was AI created - including all of the data within. The intent was to A) help me with my personal electronics inventory; and B) see how I could use AI to make that process a bit easier. DO NOT TRUST!

SparkFun Pro Micro - RP2040

Details

  • Location: Cabinet-1, Bin 32
  • Category: Microcontroller Boards
  • Type: RP2040 Development Board (Pro Micro Compatible)
  • Microcontroller: RP2040 (Dual ARM Cortex-M0+ @ 133MHz)
  • Brand: SparkFun
  • Part Number: DEV-18288
  • Quantity: 3
  • Product URL: https://www.sparkfun.com/sparkfun-pro-micro-rp2040.html

Description

The SparkFun Pro Micro RP2040 is a low-cost, high performance board with flexible digital interfaces featuring the Raspberry Pi Foundation’s RP2040 microcontroller. Besides the good ‘ol Pro Micro footprint, the board also includes a WS2812B addressable LED, boot button, reset button, Qwiic connector, USB-C, resettable PTC fuse, and castellated pads.

Specifications

  • Microcontroller: RP2040 dual ARM Cortex-M0+ @ up to 133MHz
  • Logic/Power: 3.3V
  • Memory: 264kB embedded SRAM in six banks, 16MB external QSPI flash
  • GPIO Pins: 20 multifunctional GPIO pins
  • ADC: 4x 12-bit ADC channels with internal temperature sensor
  • PWM: 10 PWM channels
  • Peripherals: 2x UARTs, 1x I2C (Qwiic enabled), 1x SPI
  • USB: USB-C connector with USB 1.1 Host/Device functionality
  • Regulator: AP2112 3.3V voltage regulator
  • Special Features: WS2812B addressable LED, Boot/Reset buttons

Dimensions

  • Board Size: 33mm x 18mm (1.3” x 0.7”)
  • Weight: ~4.5g
  • Form Factor: Pro Micro compatible

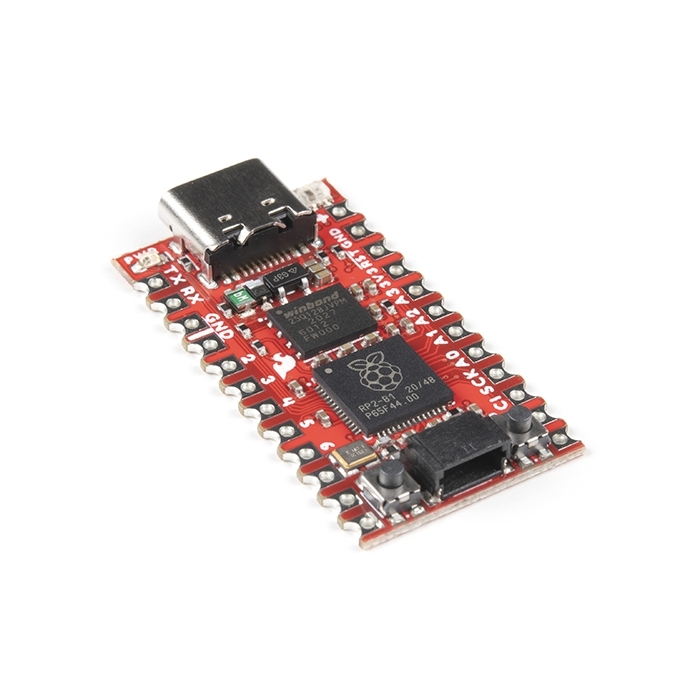

SparkFun Pro Micro - RP2040

Features

  • Pro Micro footprint compatibility
  • Qwiic connector for easy I2C device connection
  • WS2812B addressable LED for status indication
  • Boot and Reset buttons for easy programming
  • USB-C connector for modern connectivity
  • Resettable PTC fuse for protection
  • Castellated pads for direct PCB mounting
  • 16MB external flash for program storage
  • UF2 boot support for easy programming
  • Supports MicroPython and C/C++ development

Tags

microcontroller, rp2040, pro-micro, qwiic, usb-c, sparkfun, circuitpython, micropython, ws2812

Notes

Perfect for projects requiring Pro Micro form factor with modern RP2040 performance. The Qwiic connector makes it easy to add sensors and displays without soldering. Supports both MicroPython and C/C++ development environments with UF2 bootloader for easy programming.
