Important Note

This entire repo was AI created - including all of the data within. The intent was to A) help me with my personal electronics inventory; and B) see how I could use AI to make that process a bit easier. DO NOT TRUST!

Waveshare RP2040-Tiny

Details

  • Location: Cabinet-1, Bin 32
  • Category: Microcontroller Boards
  • Type: RP2040 Development Board (Ultra Compact)
  • Microcontroller: RP2040 (Dual ARM Cortex-M0+ @ 125MHz)
  • Brand: Waveshare
  • Part Number: 24665
  • Quantity: 4
  • Product URL: https://www.waveshare.com/rp2040-tiny.htm?sku=24665

Description

The RP2040-Tiny is an ultra-compact development board based on the Raspberry Pi RP2040 microcontroller. Despite its tiny size, it packs all the essential features needed for embedded development projects. Perfect for space-constrained applications where every millimeter counts.

Specifications

  • Microcontroller: RP2040 32-bit Cortex M0+ dual-core @ ~125 MHz
  • Logic/Power: 3.3V
  • Memory: 264 KB RAM, 2 MB SPI FLASH
  • Crystal: 12 MHz for perfect timing
  • GPIO Pins: 20 total GPIO pins
  • ADC: 3x 12-bit ADC channels
  • Peripherals: I2C, SPI, UART interfaces
  • PWM: 16 PWM outputs
  • USB: USB Type C connector with native USB support
  • Regulator: 3.3V voltage regulator
  • Special Features: Boot/Reset buttons, LED indicator

Dimensions

  • Board Size: 21mm x 18mm (0.8” x 0.7”)
  • Weight: ~2g
  • Form Factor: Ultra compact design

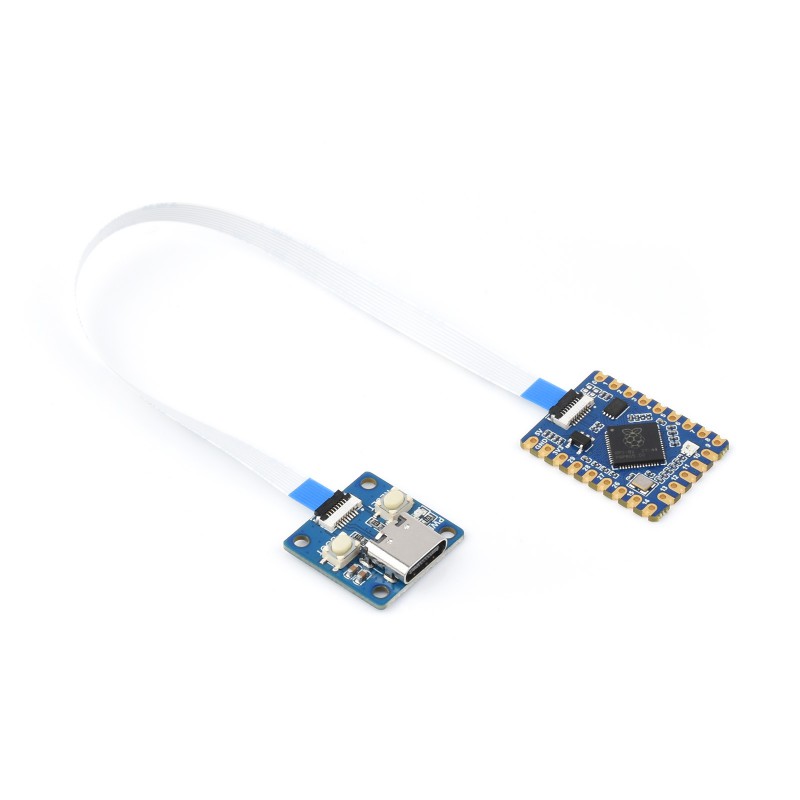

Waveshare RP2040-Tiny

Features

  • Ultra-compact form factor for space-constrained projects
  • All 20 GPIO pins broken out on castellated pads
  • USB Type C connector for modern connectivity
  • Boot and Reset buttons for easy programming
  • UF2 bootloader support for drag-and-drop programming
  • Compatible with CircuitPython, MicroPython, and C/C++
  • Low power consumption design
  • Breadboard and PCB mountable with castellated edges
  • Optional USB adapter board available for easier prototyping

Tags

microcontroller, rp2040, tiny, compact, usb-c, waveshare, circuitpython, micropython, ultra-small

Notes

Perfect for projects where space is at a premium. The ultra-compact design makes it ideal for wearable electronics, IoT sensors, and embedded applications. The castellated pads allow for direct PCB mounting or breadboard use. Optional adapter board (RP2040-Tiny-Adapter) available for easier prototyping with standard pin headers.
